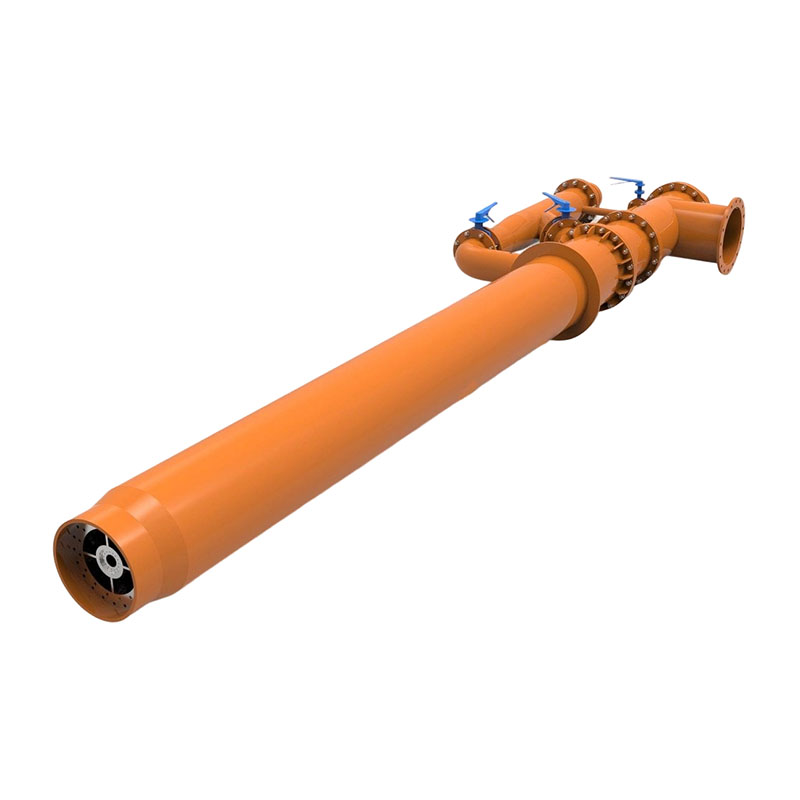

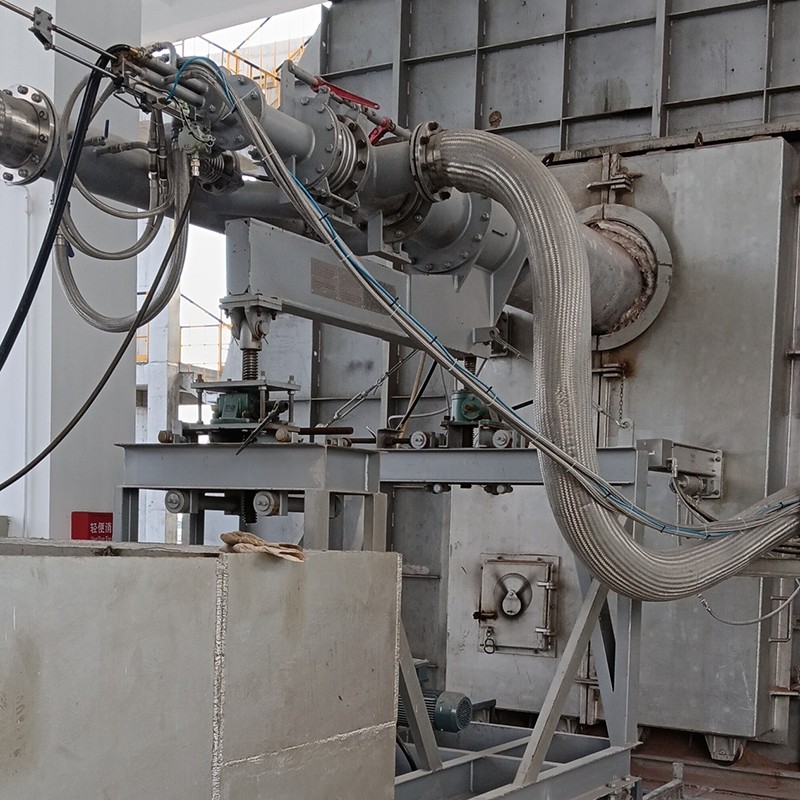

Gas Fuel Burner

GeneralFlame optimizes the burner nozzle by using its proprietary Laval nozzle structure. This enhances the burner's regulation range and process adaptability, concentrating the flame near the material without touching it, preventing flame scattering.

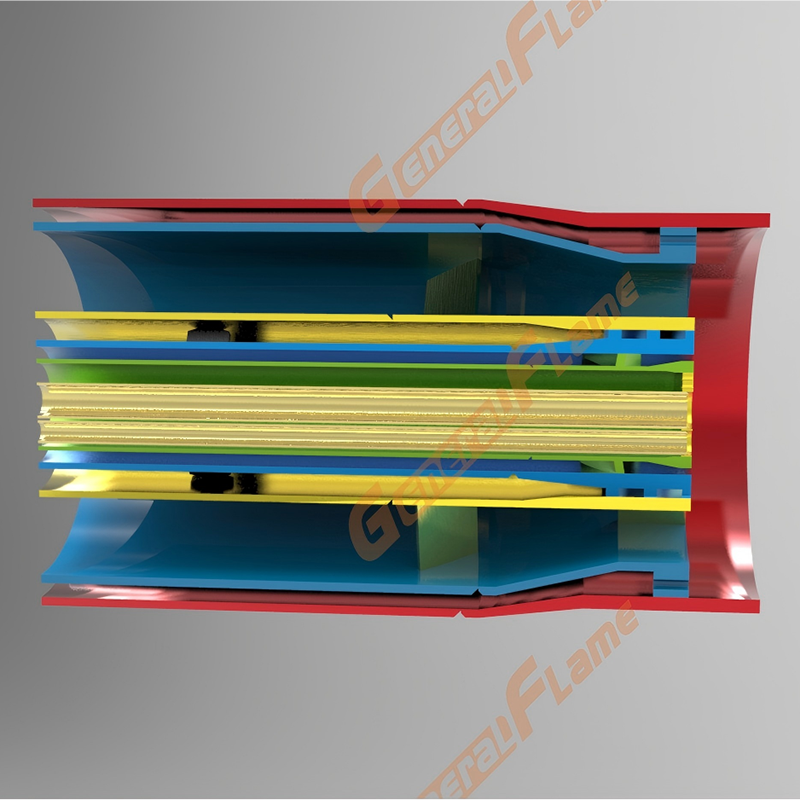

GeneralFlame patented AVLS rotary kiln burner introduces secondary air through a diffuser into the burner's axial, swirl, and center air channels. Unlike traditional burners that can only adjust the air volume entering each channel via valves (valve animation), the AVLS burner achieves wide-ranging flame shape adjustments through Laval-adjustable nozzles and adjustable swirlers, significantly improving the burner's process regulation capability. It is particularly well-suited for long-flame firing requirements in rotary kilns with high length-to-diameter ratios, such as those used in nickel-iron and lithium battery production.

The design of this long-flame gas burner is based on the following key principles:
Flame Length Determination‌: The longer the flame, the greater the gas flow (or pressure) or output power. For a given gas flow or pressure, flame length primarily depends on the mixing rate of gas and combustion air, which is mainly determined by the burner's unit thrust (i.e., the momentum of the primary air and the air flow rate per unit time). The flame is formed by the jet stream, and the size of the jet stream is determined by momentum (M). According to the momentum equation M = A × V, the smaller the primary air volume (A), the longer the flame.

Product Description

Design Principles for Long-Flame Burners‌:
1. Increase Axial Thrust and add a Flame Stabilizing Hood‌: Higher axial thrust (increased air velocity) elongates the flame. A flame stabilizing hood at the front of the axial outlet can appropriately reduce the lateral spread of the flame, resulting in a more uniform flame.
2. Adjustable Flame Shape‌: The burner must be capable of adjusting the flame shape by varying the swirl angle, swirl velocity, and axial velocity.
3. Center Air Design‌: The center air should use a circular nozzle parallel jet to create an internal recirculation zone in the middle of the flame. This not only elongates the flame but also reduces the peak temperature gradient, stabilizing the flame.

RELATED PRODUCTS
  • Flare System
    Flare System Flare System
    GeneralFlame Flare System is a critical safety and environmental protection facility in industries such as petrochemical and coal chemical.
  • Hot Blasting Furnace
    Hot Blasting Furnace Hot Blasting Furnace
    GeneralFlame hot blast furnace produces clean hot air at 50–600℃ and supports multiple fuels including natural gas, biomass and coal, with a thermal efficiency of 80%–95%. Featuring vertical structure...
  • Grate Cooler
    Grate Cooler Grate Cooler
    GeneralFlame Grate Cooler rapidly cools clinker from 1300-1400°C to below 100°C within minutes by blowing cold air through the grate onto the clinker layer. The machine consists of a grate bed with al...
  • Smelting Furnace

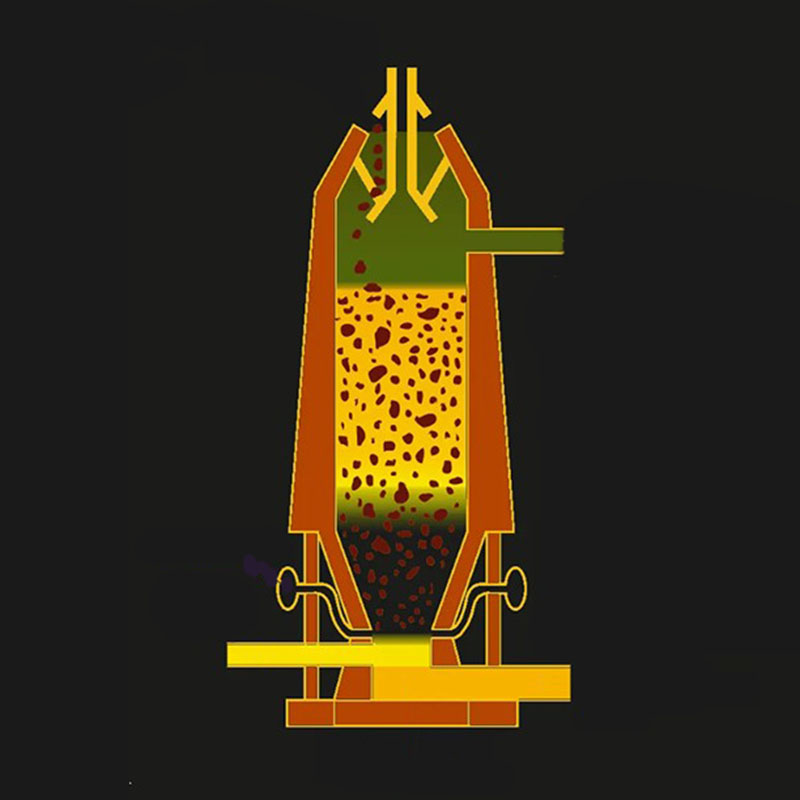

    Smelting Furnace Smelting Furnace
    Product Introduction Jiangsu Jufeng Thermal Co., Ltd., leveraging the core technology of the Thermal Energy and Power Engineering Department of a renowned university, specializes in the design, develo...

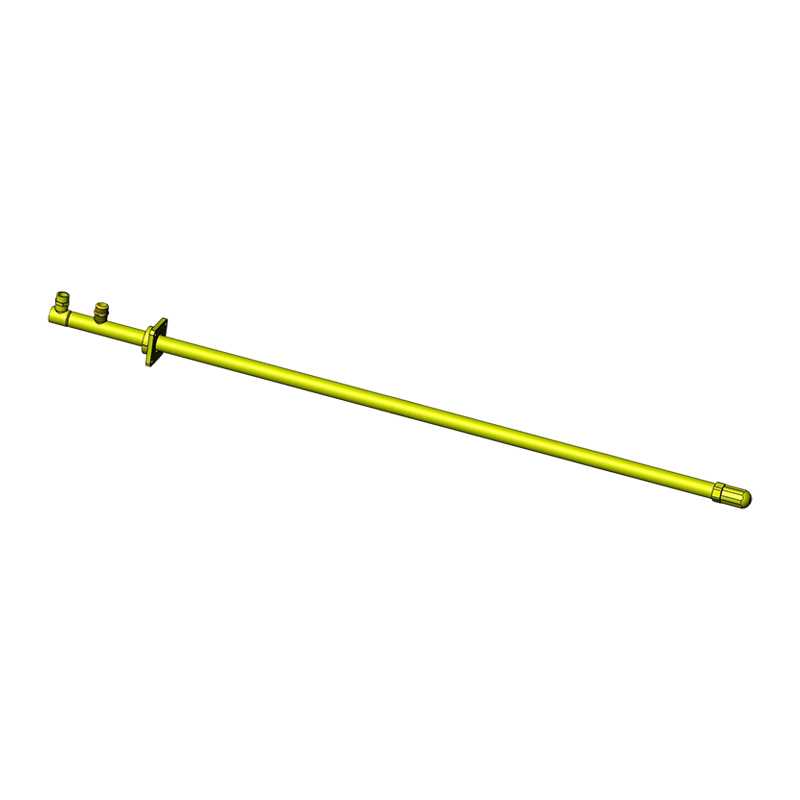

  • Incinerator Furnace
    Incinerator Furnace Incinerator Furnace
     Product Introduction Jiangsu Jufeng Thermal Co., Ltd.'s Solid Waste/Hazardous Waste Incineration System is a high-efficiency disposal solution developed by leveraging the scientific research advantag...

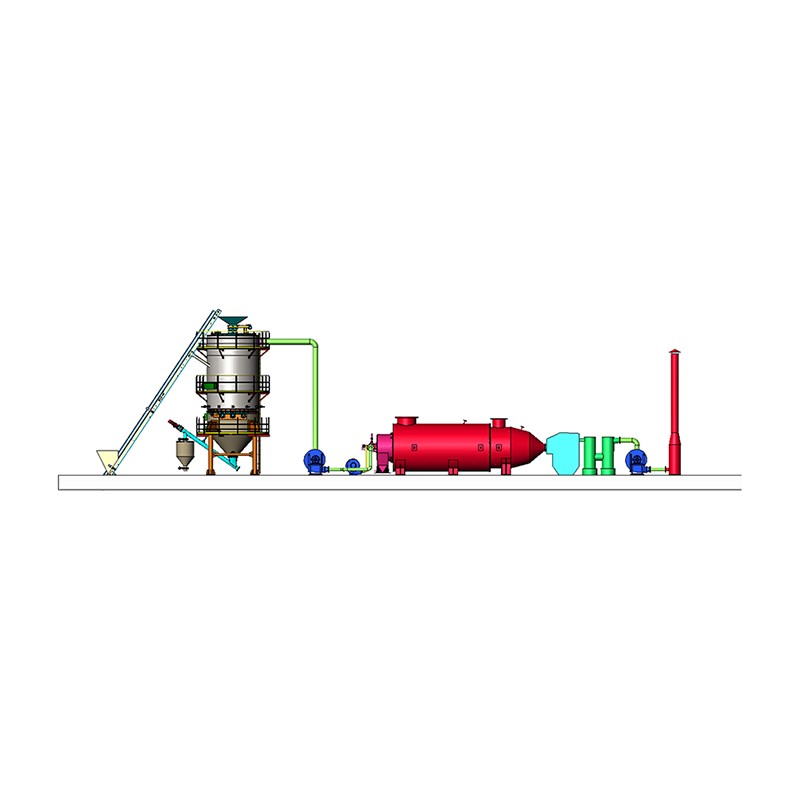

  • Biomass Gasifier
    Biomass Gasifier Biomass Gasifier
    GeneralFlame Gasifier is a device that converts solid or liquid fuels into combustible gases. Its core principle involves the thermal decomposition of hydrocarbons in the fuel at high temperatures to ...
  • Heating Furnace Burner
    Heating Furnace Burner Heating Furnace Burner
    Product Introduction Jiangsu Jufeng Thermal Co., Ltd., leveraging the profound expertise of a renowned university in the thermal engineering field, specializes in providing various types of industrial...
  • Low-NOx Burner
    Low-NOx Burner Low-NOx Burner
    GeneralFlame Low-NOx Burner Features:1. Low nitrogen emissions, environmental compliance, secure the core technology: USES hierarchical + flue gas recirculation combustion (FGR), nitrogen oxide (NOx) ...

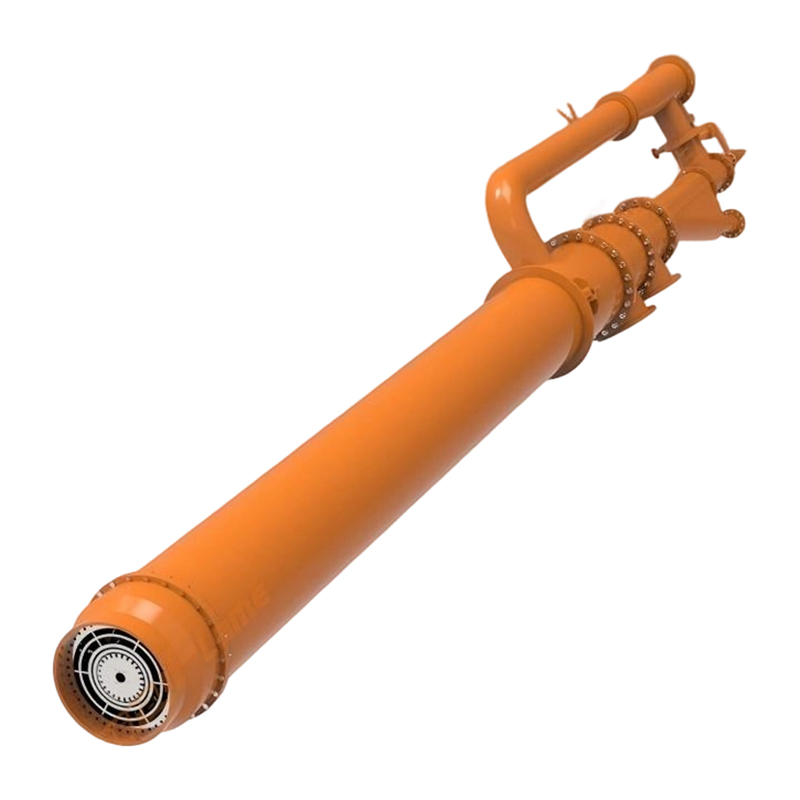

  • Multiple Fuel Co-combustion Burner
    Multiple Fuel Co-combustion Burner Multiple Fuel Co-combustion Burner
    GeneralFlame has developed multiple fuel co-combustion burners in response to market demands, including natural gas and fuel oil co-combustion burner, natural gas and coal powder co-combustion burner,...

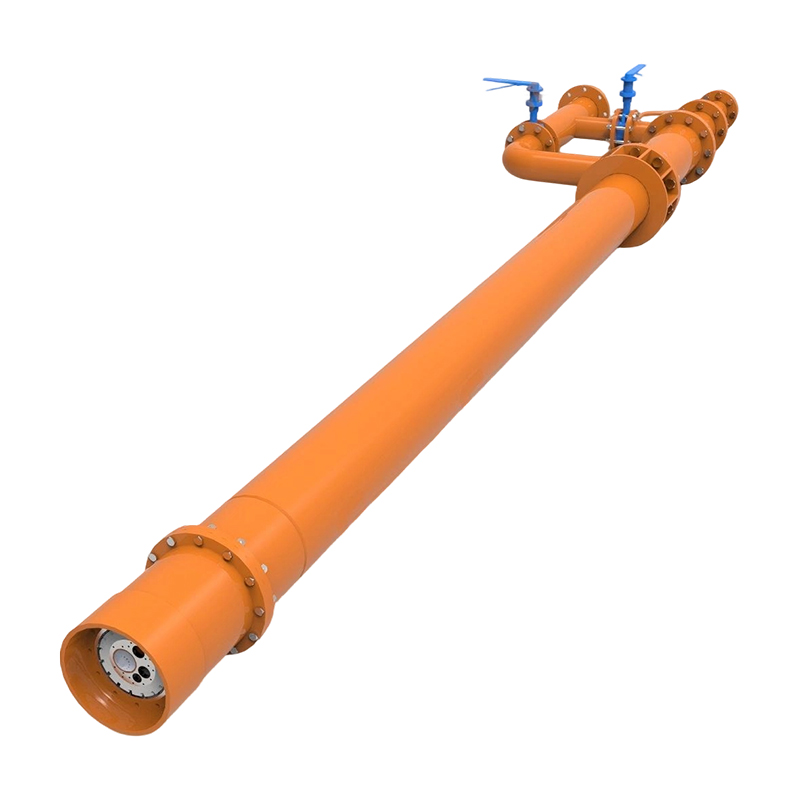

  • Liquid Fuel Burner
    Liquid Fuel Burner Liquid Fuel Burner
    GeneralFlame liquid fuel rotary kiln burner adopts a multi-channel design (such as dual-channel, triple-channel, or quad-channel), compatible with liquid fuels like diesel and heavy oil. Some models a...
  • Gas Fuel Burner
    Gas Fuel Burner Gas Fuel Burner
    GeneralFlame optimizes the burner nozzle by using its proprietary Laval nozzle structure. This enhances the burner's regulation range and process adaptability, concentrating the flame near the materia...

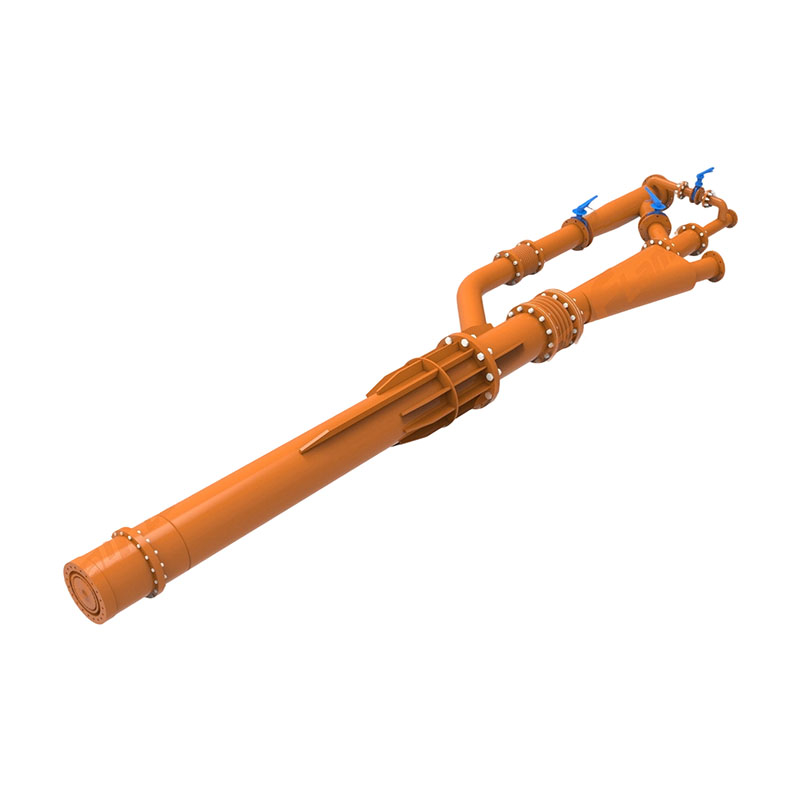

  • Solid Fuel Burner
